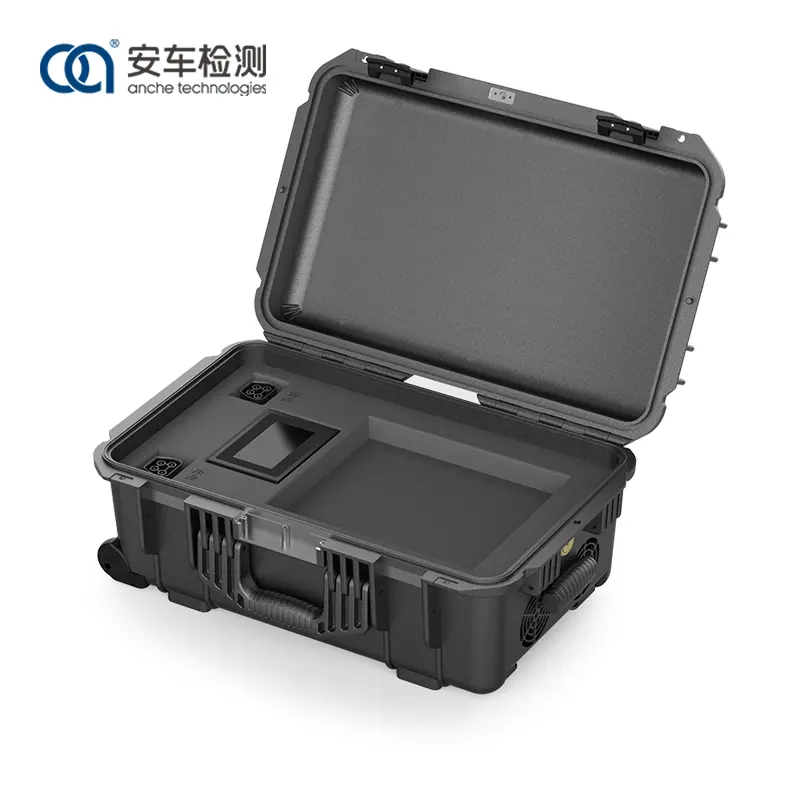

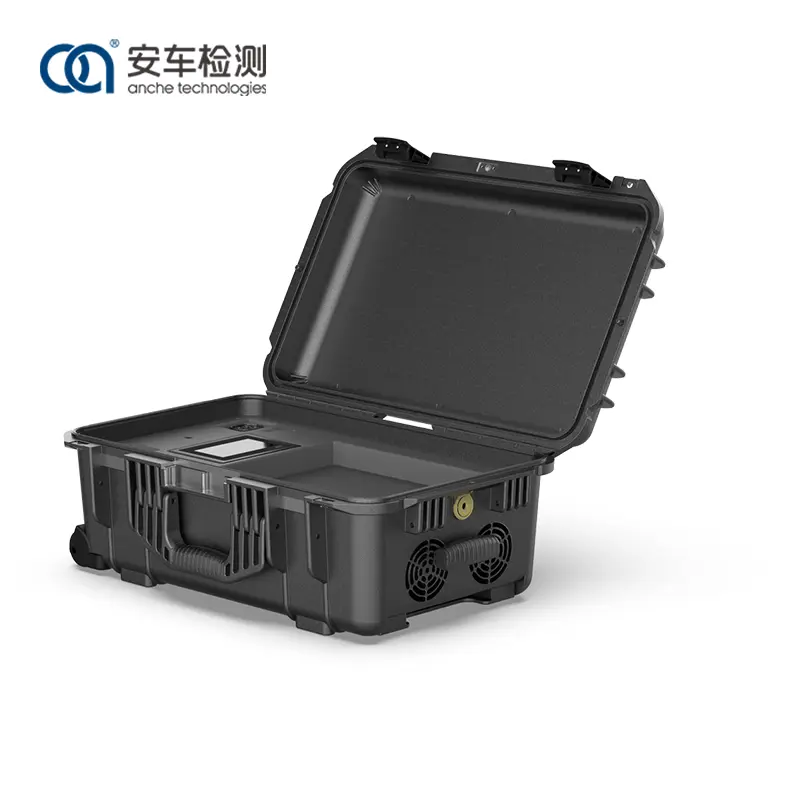

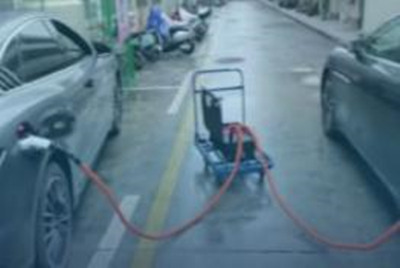

This is a portable device allowing rapid charging between vehicles. By connecting the fast charging ports of two electric vehicles, it enables swift power transfer and discharging. Additionally, it has the capability to retrieve battery pack information and diagnose electric vehicles when paired with other instruments.
1. Lightweight and convenient, and easy to operate.
2. Maximum charging power 20kW
3. Supporting charging and discharging of multiple vehicle models
4. Historical data can be traced and queried.
ACNE-NM90-01 |
||
Power supply |
9-16V DC |
|
Equipment pickup |
Pickup voltage |
260-750V DC |
Pickup current |
0-34A |
|
Equipment discharging |
Output voltage |
150-750V DC |
Output current |
0-40A |
|
Peak power |
20KW |
|
Power quality |
Voltage regulation accuracy |
<±0.5% |
Steady current accuracy |
<±1% |
|
Protective function |
Charging and discharging side protection |
Input over-under-voltage protection, output over-voltage protection, over-temperature protection, short-circuit protection, internal communication protection |
Working environment |
Altitude |
<2,000m |
Ambient temperature |
-20~40°C |
|
Relative humidity |
0~80%RH, non-condensing |
|
Fast charging gun connector |
Rubber shell fire rating |
UL94V-0 |
Connector insertion and pull-out force |
<140N |
|
Waterproof rating |
IP67 (in non-operating condition) |
|
Cooling method |
Air cooling |
|
Dimension (L*W*H) |
576*374*237mm |
|
Weight |
23KG |
