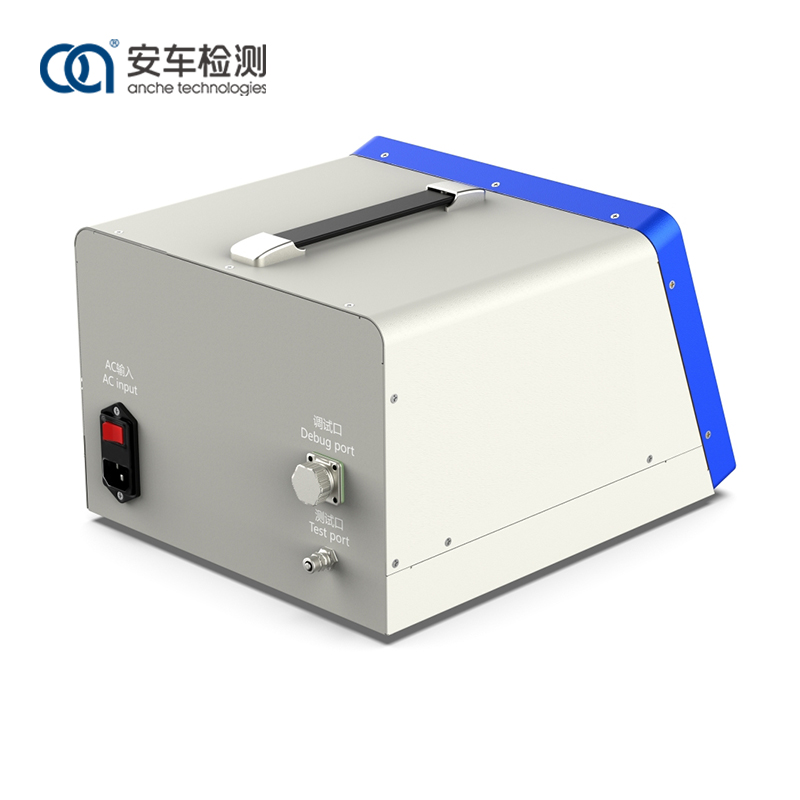

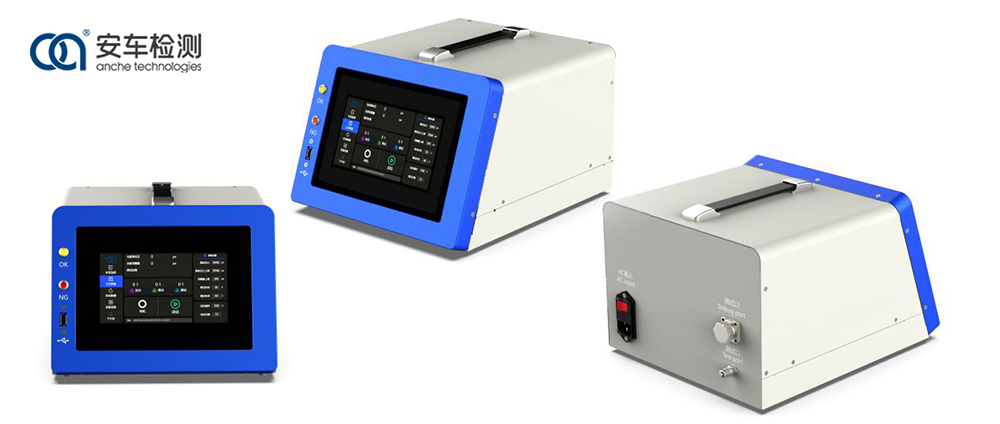

Battery Pack Air Tightness Tester

Battery pack air tightness tester is specially designed for the after-sales service market of new energy vehicles and fits for the waterproof and air tightness testing of components such as water-cooled pipes, battery packs, and spare parts of new energy vehicles. It is portable and versatile and can perform high-precision non-destructive testing, calculate pressure changes through the tester’s highly sensitive sensing system, and thus determine the air tightness of the product.

Send Inquiry

Product Description

This product is an advanced non-destructive tester supporting both low and high-voltage tests. It employs the principle of differential pressure to detect leaks in products, utilizing air as the test medium. The operational mechanism involves inflating both the standard and test samples to the prescribed air pressure, followed by closing the valve. Subsequent to a stabilization period, the tester measures the pressure differential between the standard and test samples throughout the testing phase. The difference is then converted using a specific method to calculate the leakage.

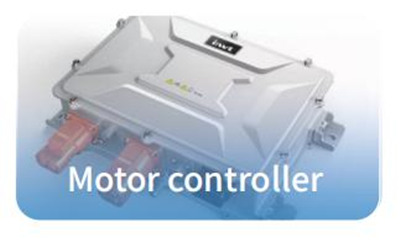

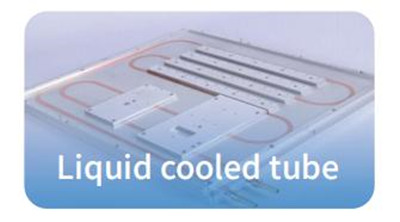

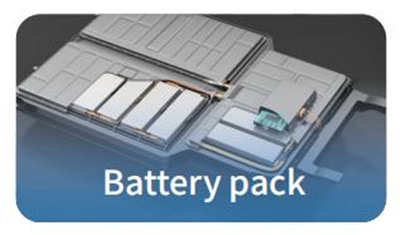

Application scenarios

Advantages & features

1.The device offers dual functionality, supporting air-tightness testing for both battery packs and liquid cooled tubes;

2.Using high-precision sensors with resolution accurate to Pa;

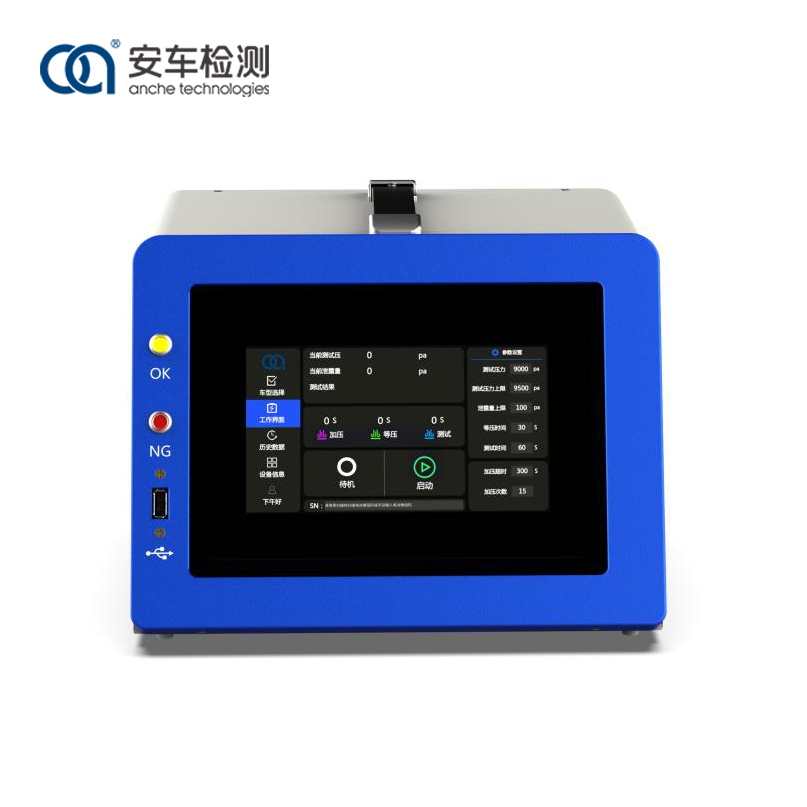

3.Simple interface and easy to operate

4.All data can be scanned and associated with IDs, and maintenance process data can be traced.

Parameters

Model

ACNE-NM30-03

Test method

Direct pressure test method

Air source

Built-in air source

Power supply

AC 85-264V AC, frequency: 47/63Hz

Power consumption

40W

Leakage range

0~9,999Pa

Test pressure range

0~9.5KPa

Test accuracy

±0.5%FS

Parameters

Parameters can be custom edited/added/deleted

Ambient temperature

0~40℃

Humidity

Below 80%RH, no condensation

Dimension (L*W*H)

270*337*207mm

Weight

6KG
