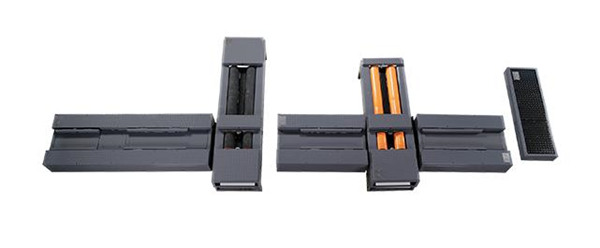

Motorcycle Test Lane

Description

Mobile motorcycle test lane can test the speed, braking and axle load of two-wheeled, regular three-wheeled and sidecar three-wheeled motorcycles.


Model

750Q Type (All models)

750 Type (Two-wheeler)





Application

Wheel load (kg)

≤750

≤400

Tyre width (mm)

40-250

40-250

Wheel base (mm)

900-2,000

900-1,700

Ground clearance

≥65

≥65

Rear wheel inner width of a regular three-wheeled motorcycle

≥800



Rear wheel outer width of a regular three-wheeled motorcycle

≤1,600







Motorcycle wheel load test

Weighing plate size (L x W)

430x600, 430x1,000

430x300

Max. weight (kg)

750

400

Resolution (kg)

1

Indication error

±0.2%, when the load is ≤10% FS

±2%, when the load is >10%FS

Overall size (LxWxH) mm

1,700x530x178

400x530x158









Motorcycle brake test

Rated load (kg)

750

400

Motor power (kW)

2x0.75kW

0.75kW

Roller size (mm)

Φ195x1,000 (long roller)

Φ195x300 (short roller)

Φ195x300

Roller center distance (mm)

310

310

Measurable max. braking force (N)

3,000

3,000

Braking force indication error

<±3%

Motor power supply

AC380±10%

Working pressure (MPa)

0.6-0.8

Overall size (LxWxH) mm

2720x750x250

1,160x750x300











Motorcycle speed test

Rated load (kg)

750

400

Motor power (kW)

3

3

Roller size (mm)

Φ190x1,000 (long roller)

Φ190x300 (short roller)

Φ190x300

Roller center distance (mm)

310

310

Measurable max. speed (km/h)

60

Resolution (km/h)

0.1

Motor power supply

AC380±10%

Working pressure (MPa)

0.6-0.8

Overall size (LxWxH) mm

2,300x750x250

1,160x750x250

Motorcycle wheel alignment

Center distance of front and rear clamps (mm)

1,447

Clamp effective stroke (mm)

40-250

Maximum measurement (mm)

±10

Indication error (mm)

±0.2

Working pressure (MPa)

0.6-0.8

Overall size (LxWxH) mm

2,580x890x250

Motorcycle clamp

Clamp effective length (mm)

1,000

Clamp effective stroke (mm)

50-250

Source pressure (MPa)

0.6-0.8

Overall size (LxWxH) mm

1,430x900x321
