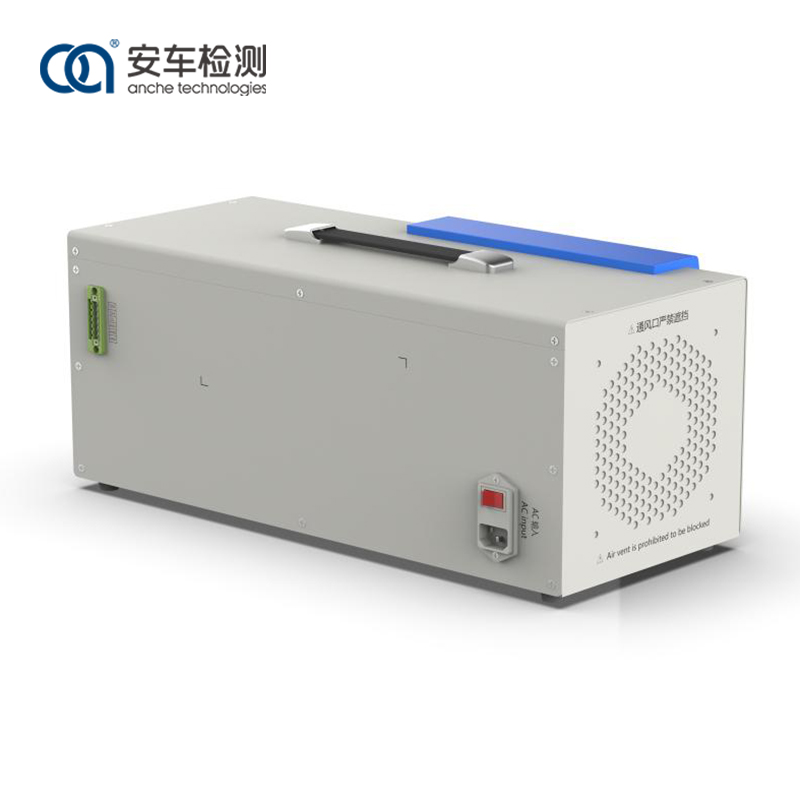

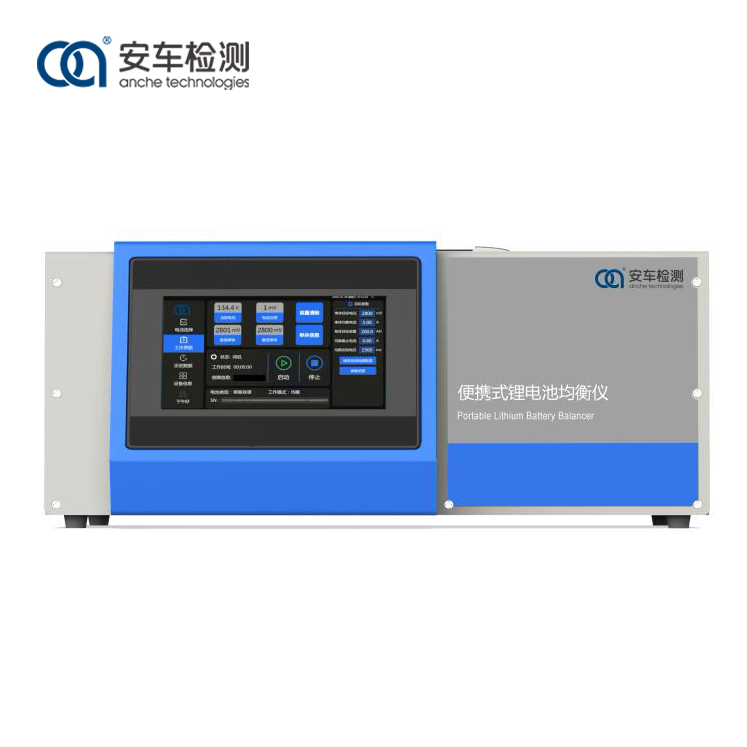

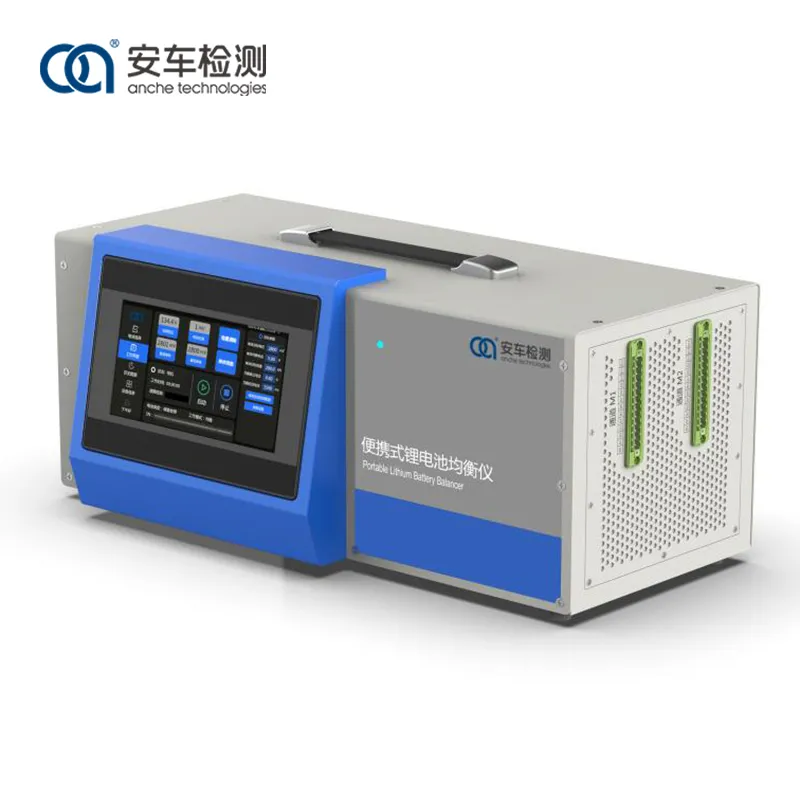

Portable Battery Cell Balancer and Tester

The portable battery cell balancer and tester is a lithium battery cell equalization and maintenance equipment specially developed for the back-end market of new energy batteries. It is used to quickly solve problems, such as inconsistent voltage of lithium battery cells, which leads to degradation of battery range caused by individual capacity differences.

Send Inquiry

Product Description

This product utilizes an advanced charging and discharging topology to thoroughly diagnose and rectify voltage and capacity discrepancies among the cells of batteries that have undergone extended periods of operation. By implementing targeted repair methodologies, it enhances the overall available capacity of the battery pack and prolongs the service life of the power battery. Additionally, the entire system boasts support for remote access by mini-programs and facilitates OTA upgrades.

Application scenarios

Advantages & features

1. Dual hardware-software protection with integrated security redundancy.

2. CC-CV charging and discharging mode, the battery is infinitely close to the target voltage.

3. Simple interface and easy to operate.

4. Supporting one-click data export and traceable process.

Parameters

Model	ACNE-NM10-1024
Power supply	Supporting AC 110V/220V (110V power supply halved)
Frequency range	50/60Hz
Number of balance channels	1~24 channels
Output voltage range	0.5~4.5V
Output current range	Settable at 0.1~5A
Output power	Maximum 25W for single channel
Voltage measurement and control accuracy	±1mV (after calibration)
Current measurement and control accuracy	±50mA
Protection measures	Software and hardware protection, mis-connection detection
Cooling method	Air cooling
Protection grade	IP21
Dimension (LWH)	464243221mm
Weight	12kg
